(S) – 2012 Marmo Meccanica – 5 axis Saw

Item Description: 5 Axis Saw

Type: 5 Axis saw
Make: Marmo Meccanica
Model: HTO XALOC.R

Year: 2012

Condition (including hours used, if applicable): Great
Known defects: None

Terms and Conditions of Sale

 Price: Call for Details

 Warranty, and if no warranty state “as-is”: AS IS

 Return policy, if any: – None

Delivery method (pickup; shipping; etc.) including responsibility for cost: Buyers Responsible for disassembly; Shipping.

Taxes and any other government fees (whose responsibility): Buyer

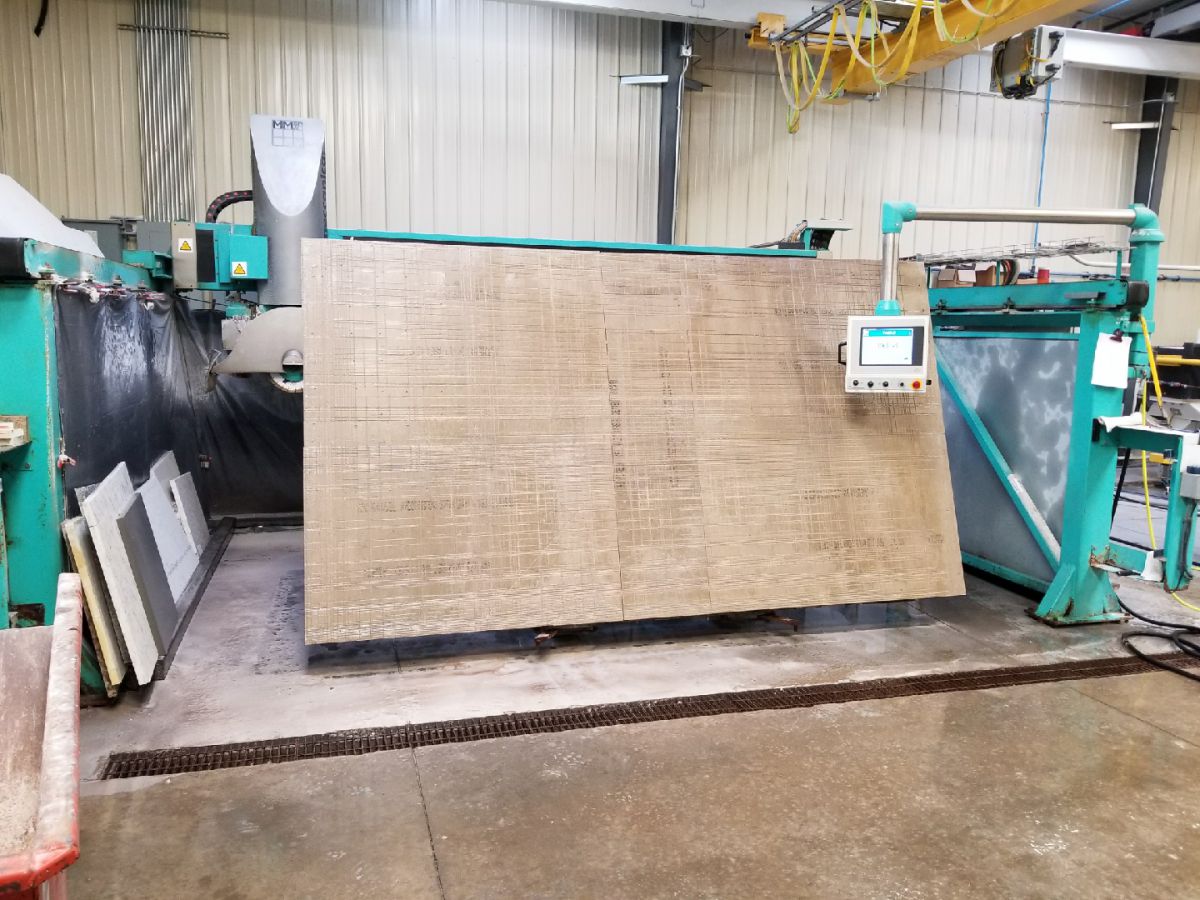

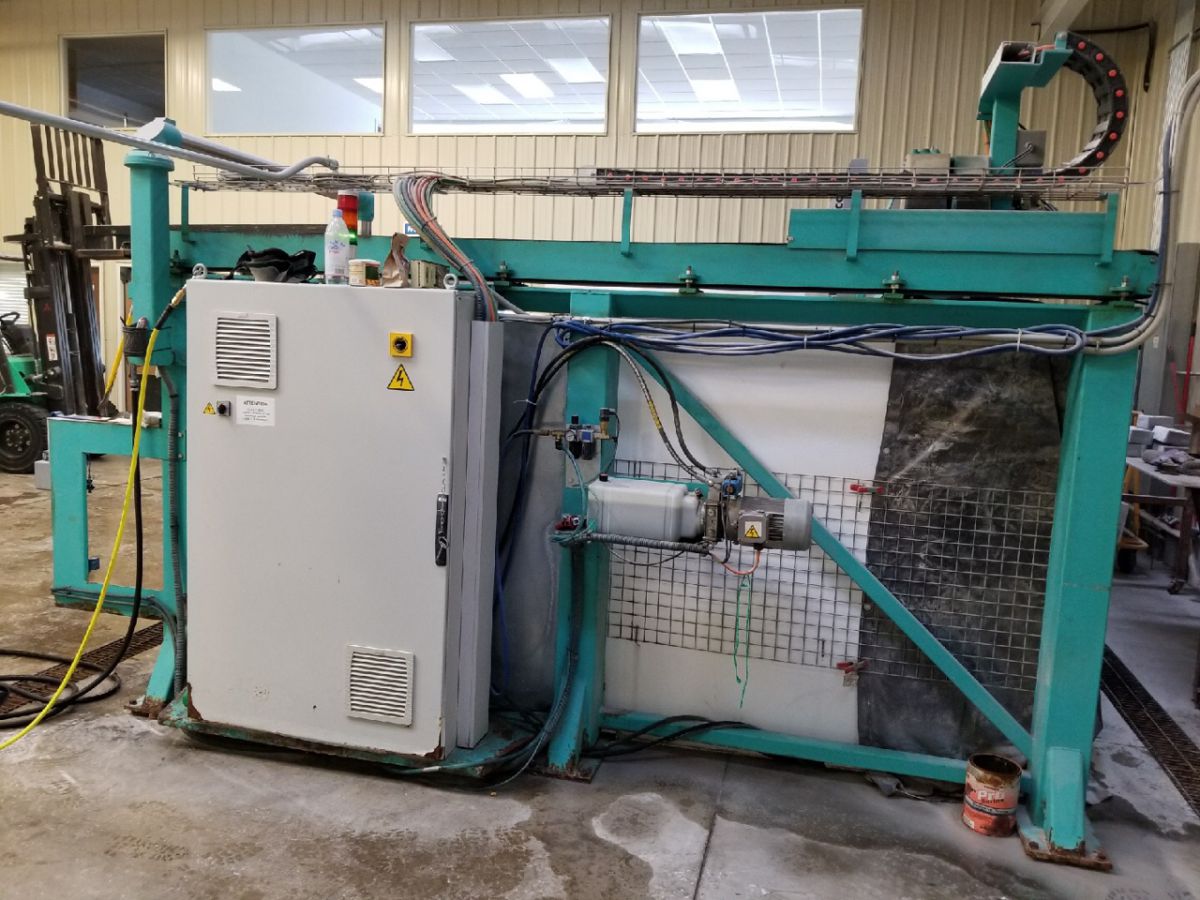

 Photos of the 5 Axis saw


This information is provided by a third party online resource and we do not warranty its accuracy.
Specifications:
HTO-XALOC-R is a rotating head bridge saw that is a quick and precise machine which able to cut even the largest slabs in manual, semiautomatic, and automatic mode. In automatic mode, the machine can perform parallel cutting, cutting programmes for kitchen tops, fanshaped stairs, curvilinear cutting programs by disc. The machine is also capable of cutting sink holes, drilling faucet holes, and routering many different shapes by use of a second milling mandrel located on the side of the saw blade.

ADVANTAGES OF THE HTO-XALOC

• Fully Programmable saw capable of cutting using DXF files
• Rotating Head saw minimizes shop space
• Hydraulic Tilt table for easy loading and unloading

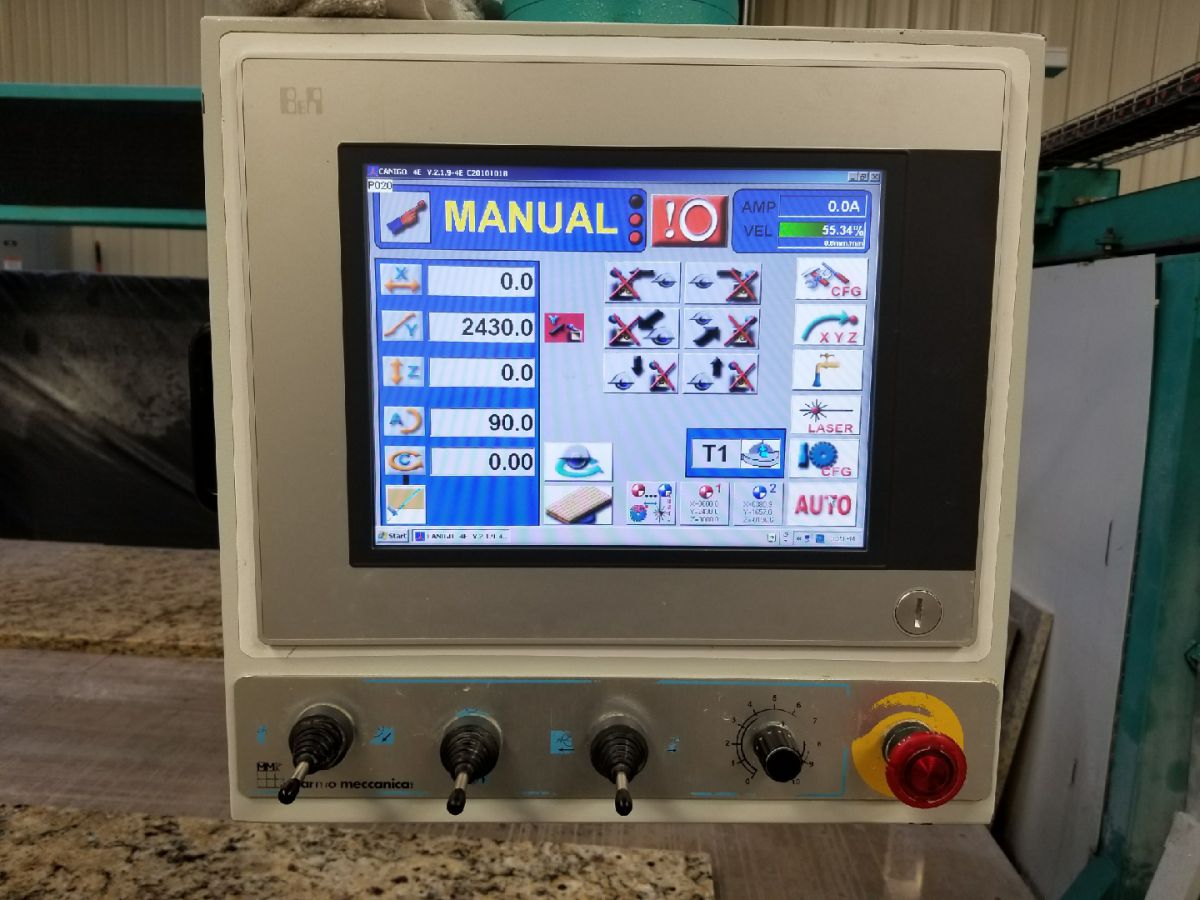

• Touch Screen control panel for manual operation
• Wireless Networking Capabilities for easy programming
• Slab nesting capabilities
• Able to cut large radius and round cuts
• Internet technical support available
• Router bit optional for sink holes and faucet holes
• Camera Option available to take pictures of material

SPECIFICATIONS OF THE HTO-XALOC

• Cutting Length: 142.5 inches (with standard disc case)
• Bridge Transversal Stroke: 138 inches
• Disc Vertical Stroke: 16 inches
• Disc Diameter: 14 inches-26 inches (up to 33 inches with supplementary disc case)
• Bench Dimensions: 118×63 inches
• Moving And Cutting Speeds Adjustable By Inverter
• Water Consumption: 5 gallons/minute
• (with 14 inch disc)
• Approx. Machine Net Weight: 8800lbs
• Disc Electro-spindle Power: 25hp
• Total footprint of the Machine: 22 x 16 feet
• Electrical Requirement: 230v/3phase 100 amps
Source: http://marmo-na.com/index.php?main_page=index&cPath=1
