Sold Used 2019 GMM Extra 400 CN2 5 Axis CNC Saw Leasing Available $1,950Month**

Connect With Us!

Call us Text Us

Item Description: 5 Axis CNC Saw

Type: 5 Axis CNC Saw
Make: GMM
Model: Extra 400 CN2

Year: 2019

Condition (including hours used, if applicable):
Known defects: None

Terms and Conditions of Sale

 Price:Call Charles for pricing at 877-959-9192

 Warranty, and if no warranty state “as-is”: AS IS

 Return policy, if any: – None

Delivery method (pickup; shipping; etc.) including responsibility for cost: Buyers Responsible for disassembly; Shipping.

Taxes and any other government fees (whose responsibility): Buyer

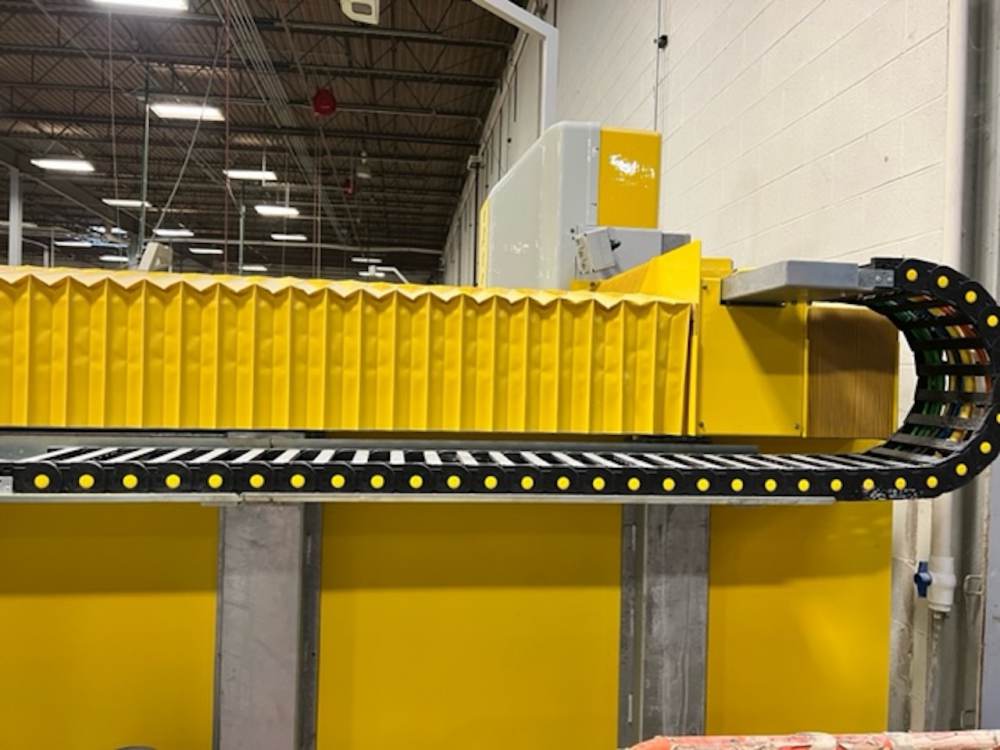

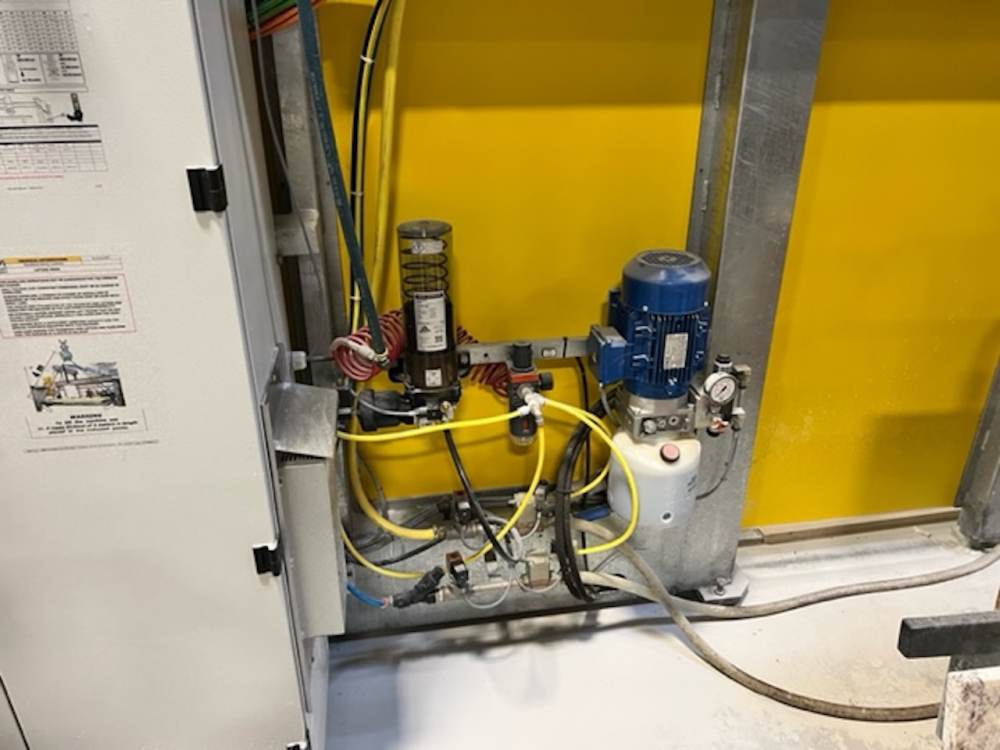

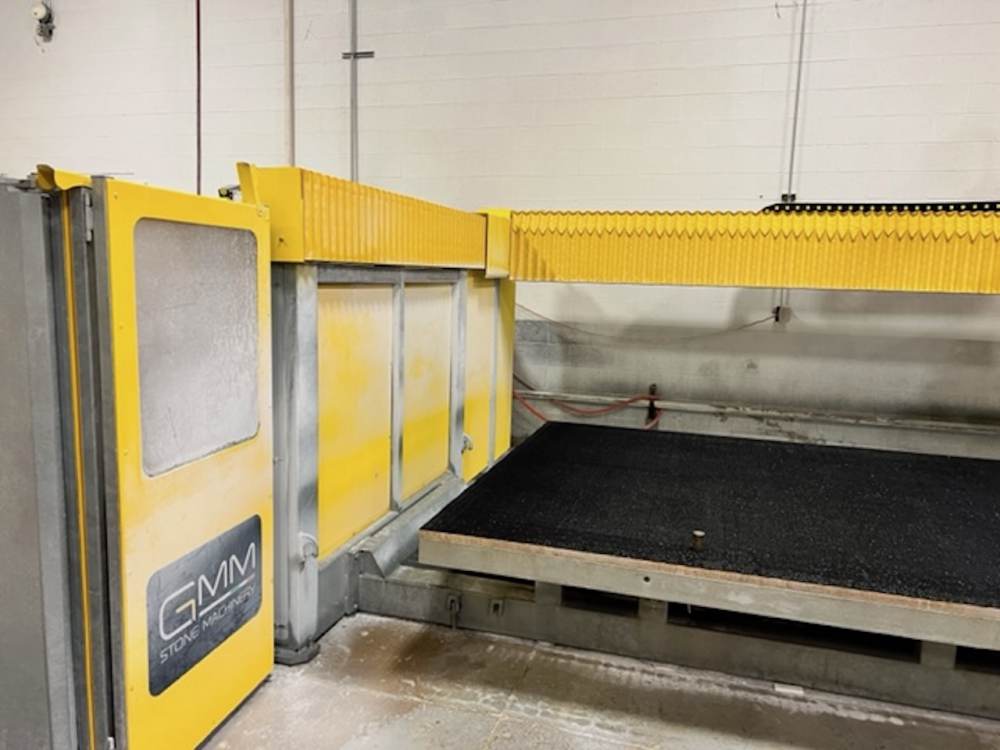

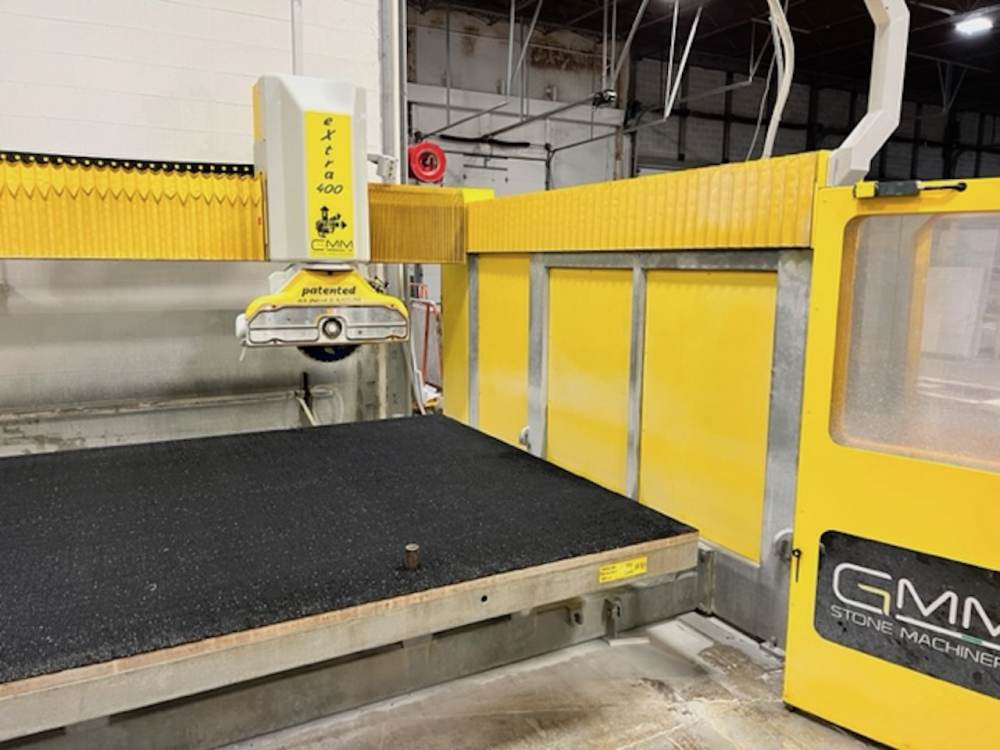

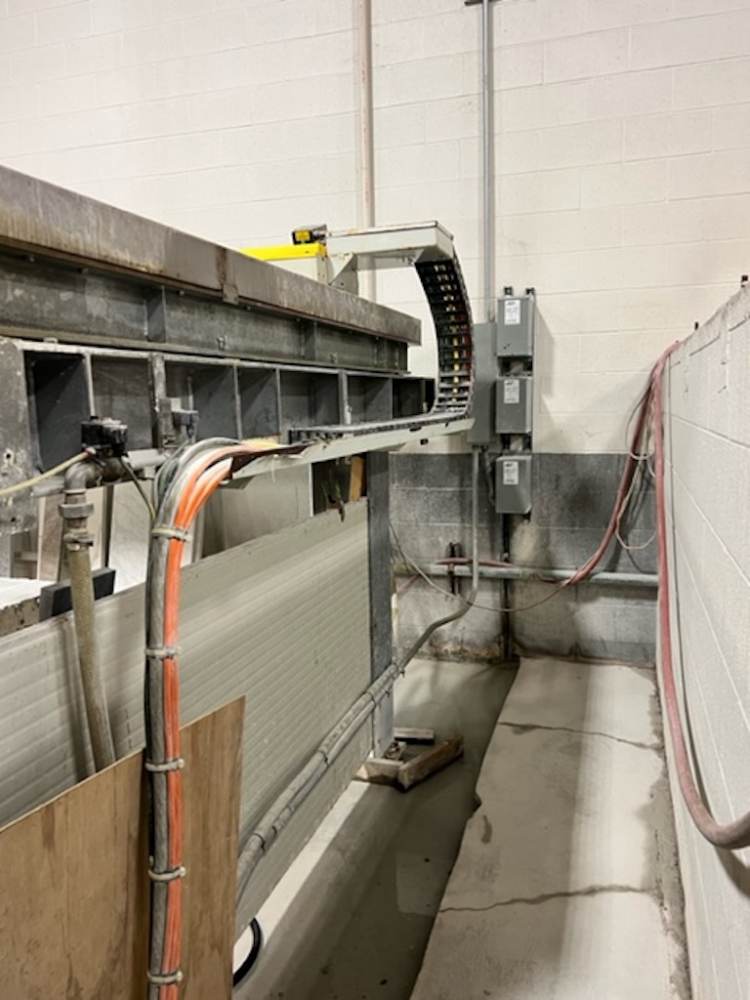

 Photos of the 5 Axis CNC Saw

This information is provided by a third party online resource and we do not warranty its accuracy.

FEATURES
Fully interpolated 5 axis movement with rotating head with 370° range, inclination from 0°-90°.
Hot dipped galvanized steel fi xed with saw surface in high density plastic rubber matting (optional) with max blade size of 625 mm (24.6 in) and minimum blade size of 300 mm (11.8 in) with Z axis (rise and fall movement) of 400 mm (15.75 in).
The complete structure is made up of hot dipped galvanized steel structures – supplied with folding door solid panel safety barriers.
Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis controlled by CNC.
Electro spindle running up to 4500 rpm (6000 on request with center water feed and a 36×2 or ½” gas fitting).

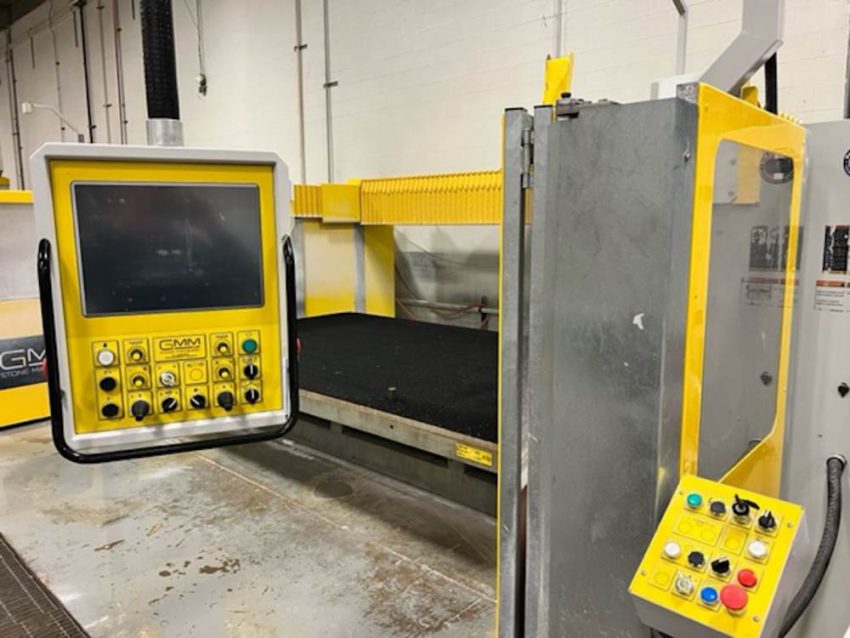

Suspended pendant with 15” TFT color touchscreen. Machine is equipped with USB/Ethernet port for easy loading of programs. Stainless steel electrical panel.
Upon request the machine can also be equipped with parametric drawings, Cuts From CAD, contouring, profiling and shaping, drilling with auto tool changer with magnetic connection, digital camera to provide a jpeg of the slab on screen.
By using the integrated Vacuum head, (upon request) the machine performs automatic movement/unloading of sawn pieces, man power and raw material saving.
TECHNICAL DATA
DESCRIPTION UM VALUE
Cutting stroke of the blade (x axis) mm 3700
Maximum bridge traslation (y axis) mm 2700
Maximum vertical travel of the blade (z axis) mm 400
Bevel cutting area at 45° (blade 400) mm 3400×2400
Max angle of tilt head (r axis) ° 0°÷90°
Maximum blade rotation (w axis) ° 0°÷370°
Maximum blade diameter mm 300-625
Maximum cutting depth mm 205
Blade hole diameter mm 50-60
Blade locking flange diameter mm 213
Table dimension mm 2250-2400*x3800
Power of the blade motor kW 13 (S 6)
Blade speed rpm 800÷4500-6000*
Slide cut speed (x axis) m/min 0÷35
Bridge translation speed (y axis) m/min 0÷35
Vertical movement speed (z axis) m/min 0÷7,5
Water consumption at 3 bar l/min 40
Total machine mass kg 4200
Machine packing dimensions O.T. container 20’
*Optional

Source: http://www.gmm.it/en/dettaglio-prodotto/5-axis-sawing-machines/extra-400-cn2/
