Item Description: CNC Sawjet
Type: CNC Sawjet
Condition (including hours used, if applicable): Great, hours 1,500
Known defects: None
Terms and Conditions of Sale
Price: Call Charles for pricing at 877-959-9192
Warranty, and if no warranty state “as-is”: AS IS
Return policy, if any: – None
Delivery method (pickup; shipping; etc.) including responsibility for cost: Buyers Responsible for disassembly; Shipping.
Taxes and any other government fees (whose responsibility): Buyer

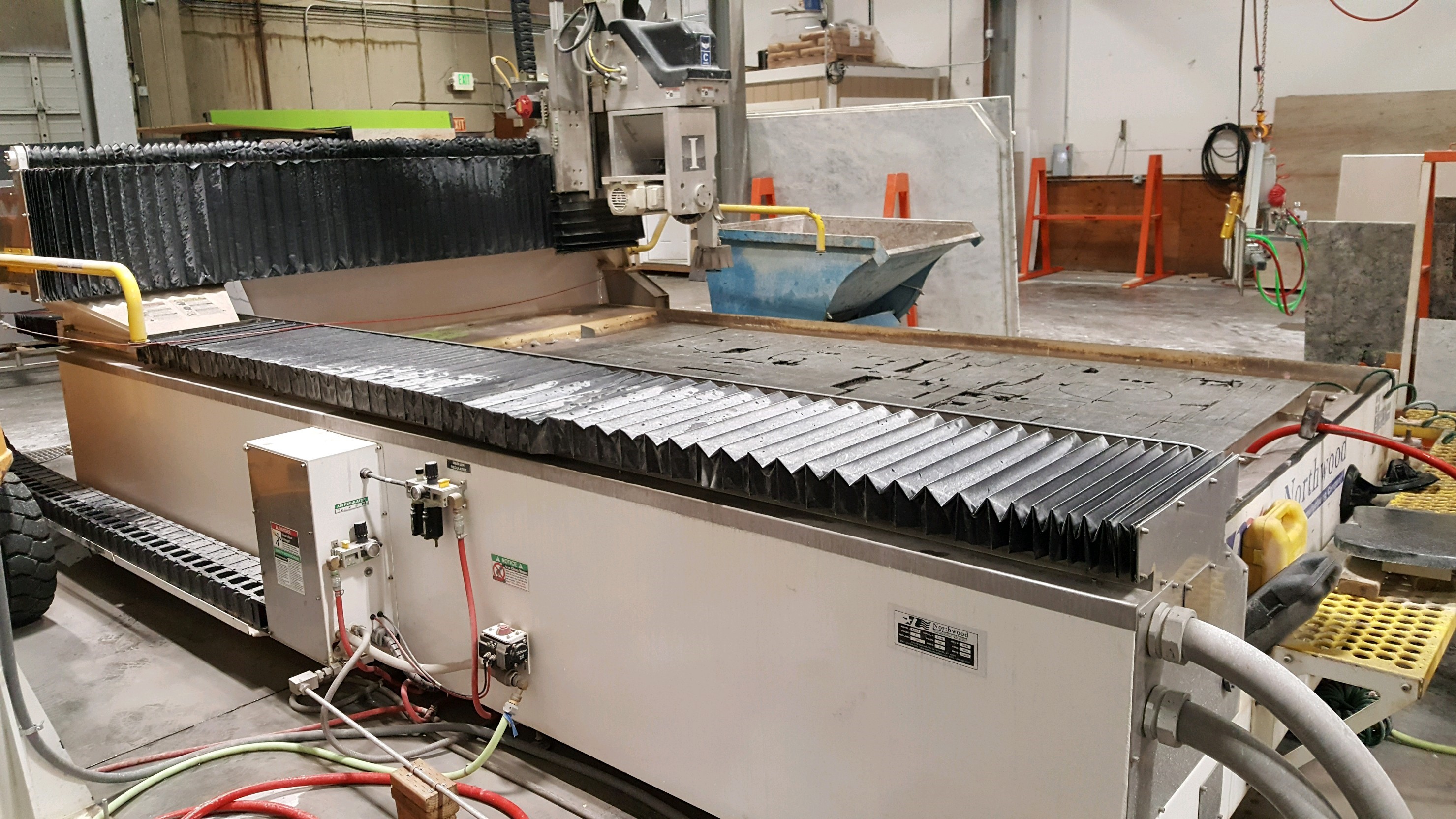

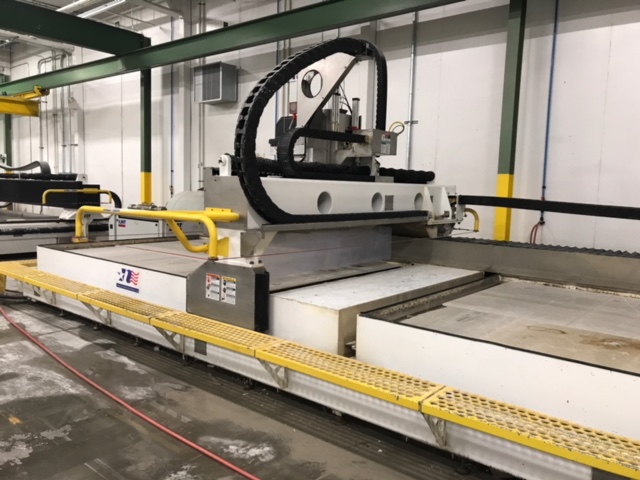

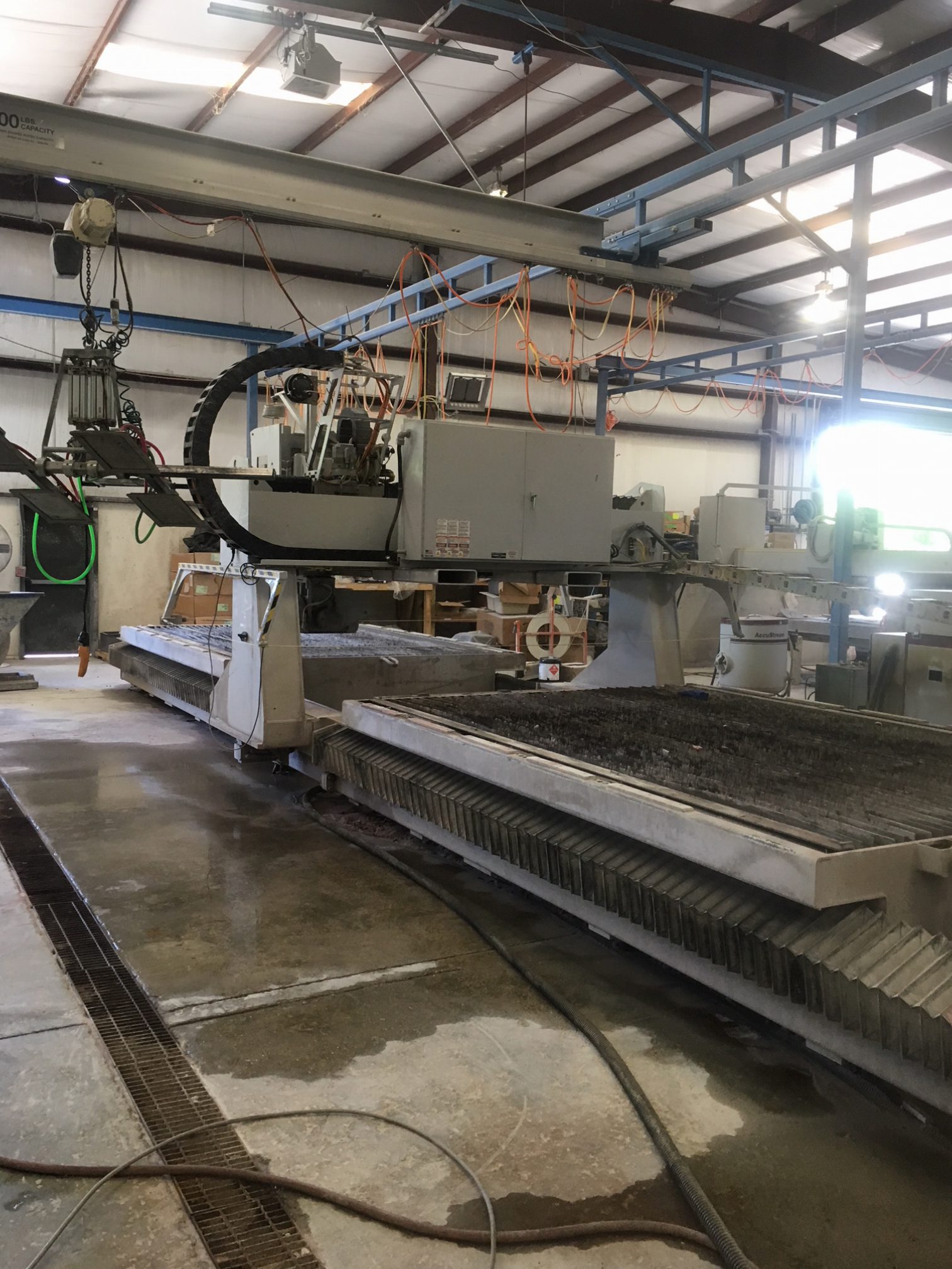

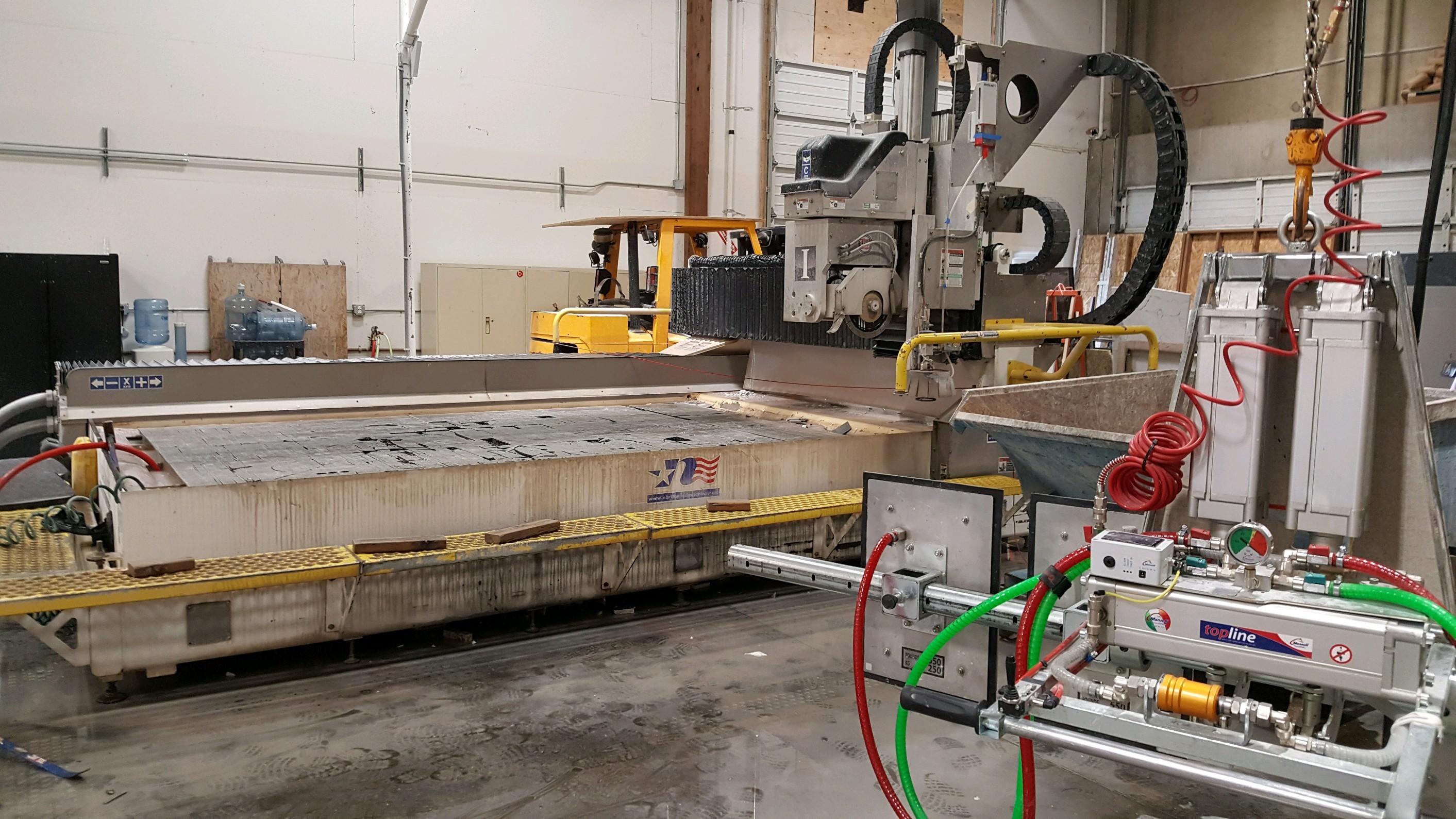

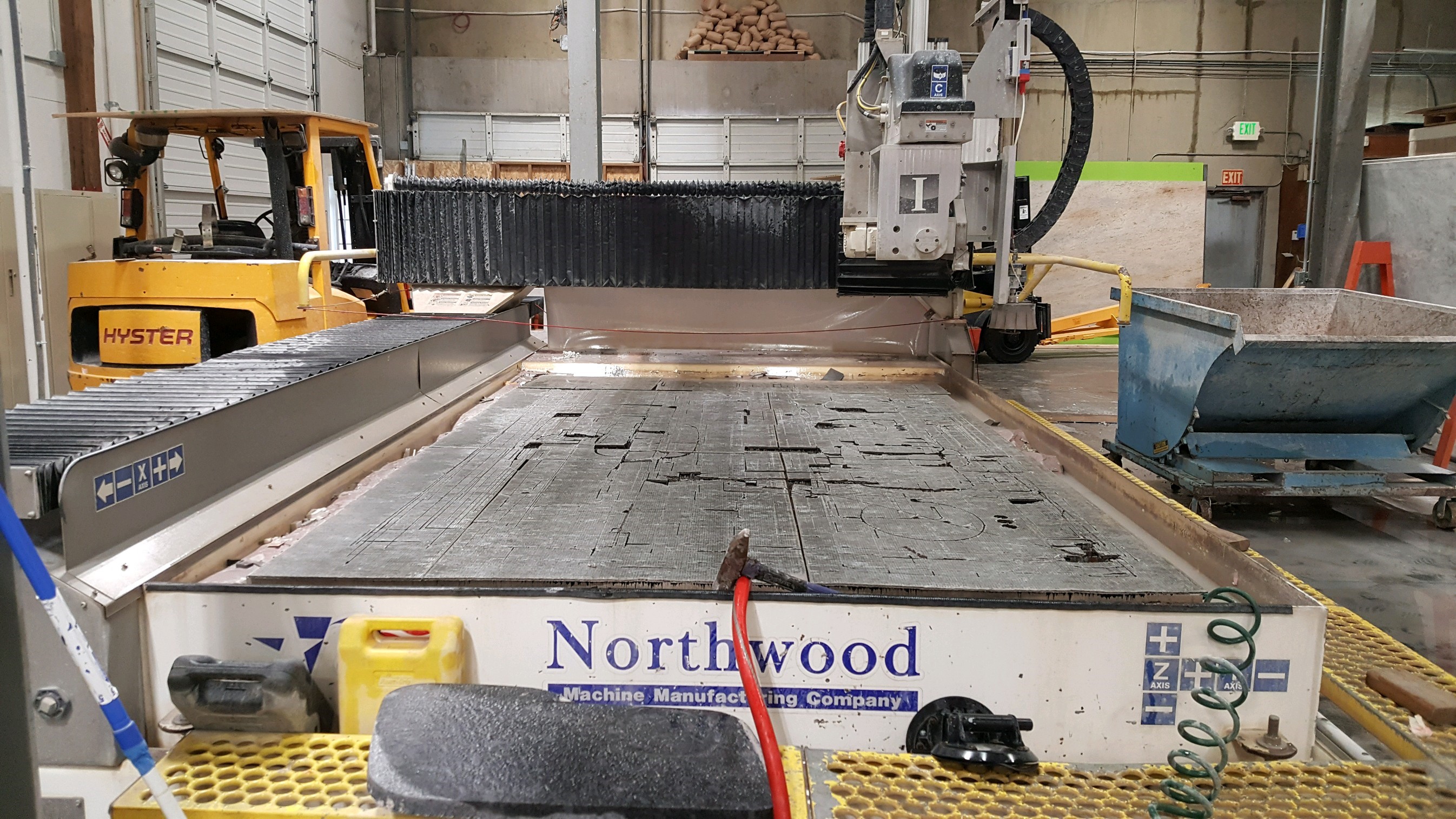

Photos of the CNC Sawjet
This information is provided by a third party online resource and we do not warranty its accuracy.
SERVO MITRE SAW
The Northwood SawJet comes with a 20 HP Saccardo motor and 16 blade for cutting marble, granite, and limestone. The saw is equipped with Smart Saw Feed Function that uses dynamic force feedback to continuously vary cutting speeds, this allows for improved efficiency when cutting quartz and Dektom(tm) stone products. Mitering capabilities through the Wittenstein gearbox and Fanuc drive allow up to 48 degrees of motion.
KMT Pump and Garnett System
In addition to the saw-motor, the Saw Jet is equipped with an abrasive waterjet head from KMT Waterjet, and is powered by a 60,000 PSI Intensifier Pump. The garnet is fed from a pressurized reservoir to a motor-driven, metered feeder system proximate to the waterjet nozzle. The SawJet software automatically switches between the saw and waterjet as the condition demands, and blends the two cuts as a product of an easy-to-follow calibration routine. In addition, Northwood’s industry-leading StoneVision(tm) 3.0 software, coupled with Alphacam(tm) software by Vero Software, takes the difficulty and risk out of processing drawings or digitized data into machine toolpaths.
The Northwood SawJet integrates a complete run of high-pressure stainless steel piping. The piping lines are contained in a dual chamber energy chain, providing proper protection and control of each line. This system improves the life and reliable of the hp pressure lines.
Fanuc Servo Driven Ground Ball Screws
The Northwood SawJet is controlled by a FANUC Servo control system closely integrated with a 40mm ground ballscrew This combination is designed to provide years of trouble free operation and also provide the highest level of accuracy. Northwood’s interface software and machine control allow an operator to quickly load and run part programs, as well as perform other machine tasks. In addition, Northwood’s industry-leading StoneVision(tm) 3.0 software, coupled with Alphacam(tm) software by Vero Software, takes the difficulty and risk out of processing drawings or digitized data into machine toolpaths.
- Mounted Camera system and calibration means for taking accurate slab photos
- Bar Code Reader for quickly loading work programs and other information
- Cleanout-system ready tanks and drain connections
- Industrial air hookup with particulate filter and coalescing filter with auto-drains
- Solenoid-actuated dual-side flood coolant for the saw blade
- Single, industrial, fused, lockable, disconnect for all incoming power
- Conduit wire-hose management system for all floor cabling
- Remote machine control diagnostics
- StoneVision fabrication software & AlphaCAM
- Corrosion resistant paint, hardware, and rails
- Lifetime phone support and personnel training
