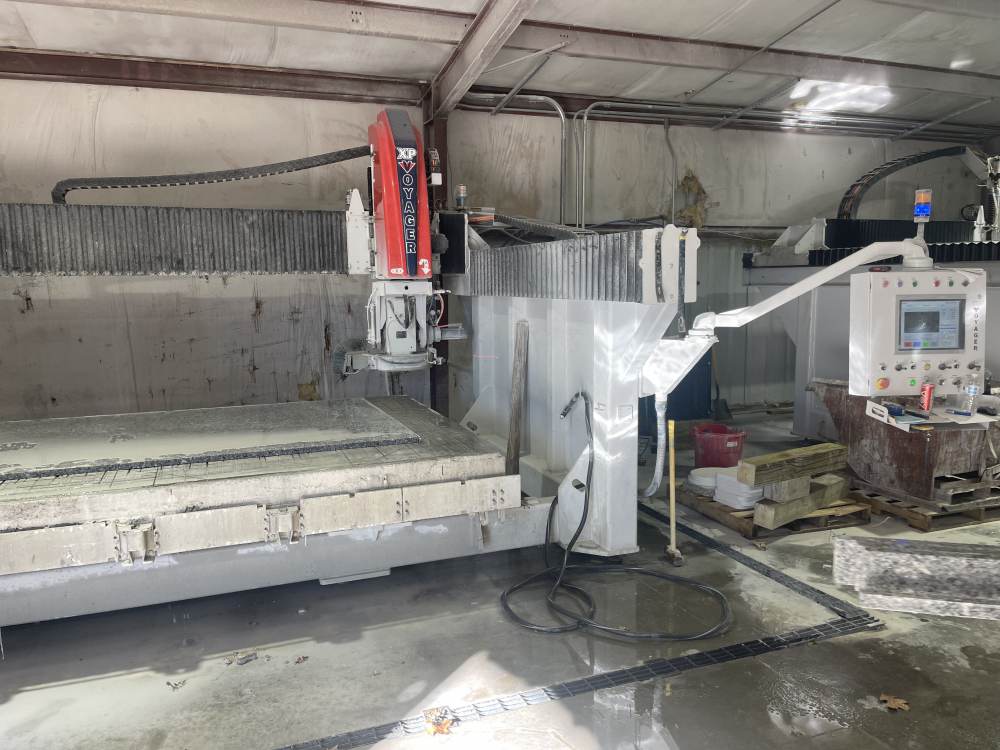

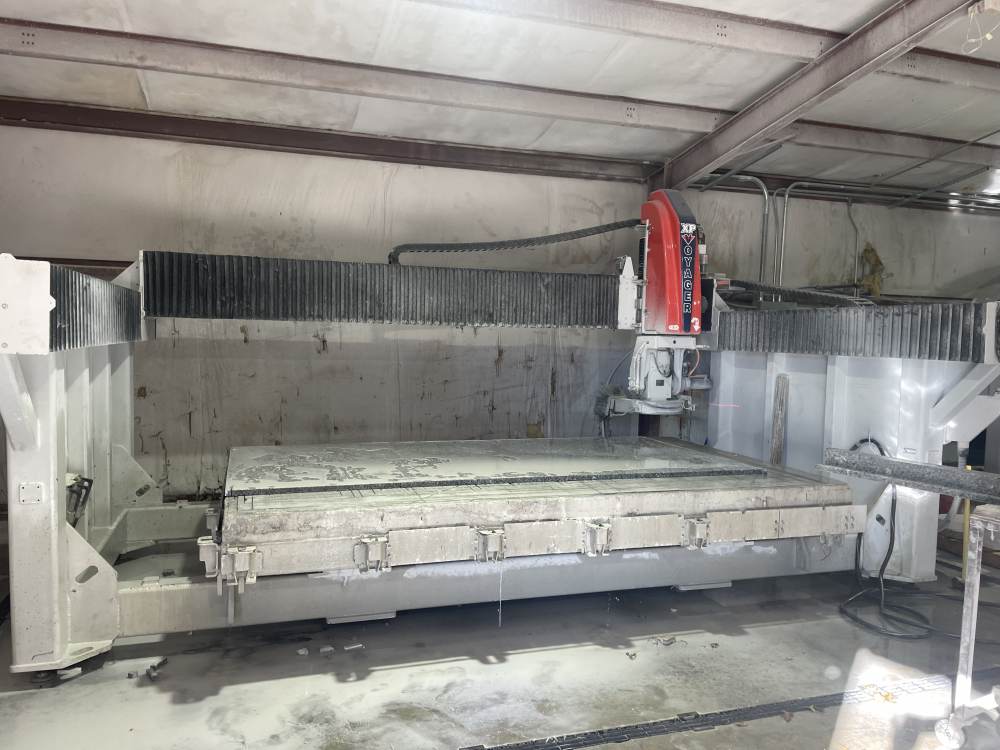

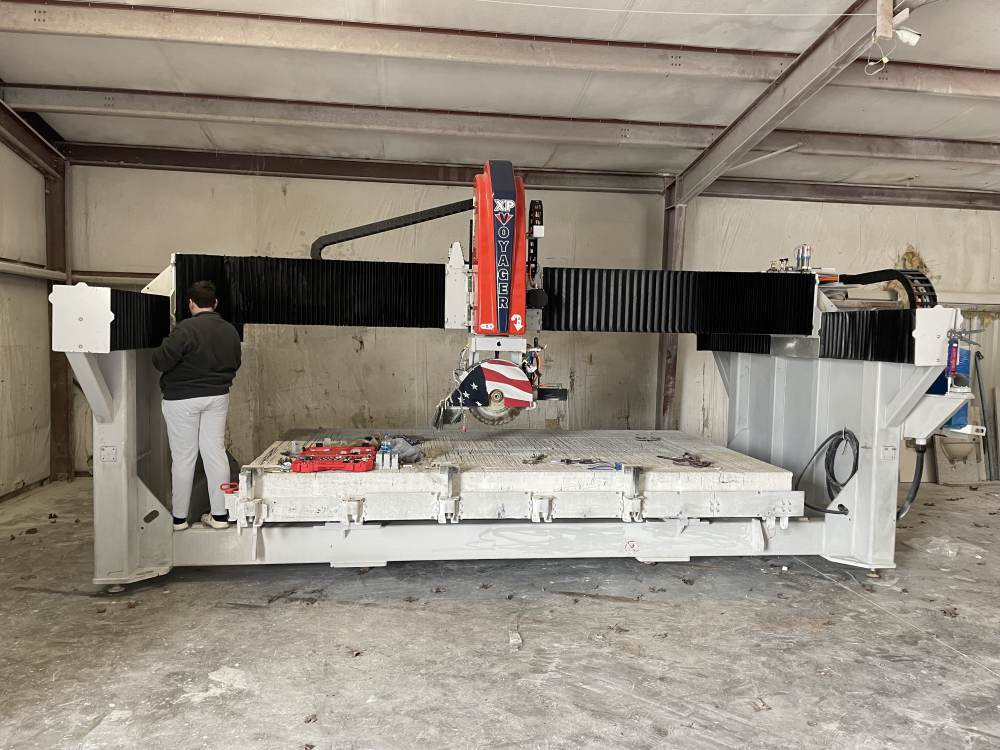

For Sale Used 2022 Park Industries Voyager XP 5 Axis CNC Saw Financing Available as low as $2,597.00**

---

This information is provided by a third party online resource and we do not warranty its accuracy.

5- Axis Movements

The VOYAGER™ XP is a 5-axis CNC Saw, with the ability to move the X, Y, and Z linear axis and rotate the A and C axis; reducing overall program cycle times.

This design also allows for: continuous arc blade cutting, incremental routing, straight line profiling, faucet coring, 0-47° mitering and more, making it an extremely versatile machine.

Powered Up with XP

The spindle motor on the VOYAGER™ XP provides 27 hp to cut even the hardest of materials like quartzite at faster speeds. Built to run at a higher amperage for longer periods of time, the VOYAGER™ XP can push tools harder and increase the throughput of the saw.

With a standard VFD, the spindle can run from 1000 to 6000 rpm. The spindle arbor motor on the VOYAGER™ XP easily adapts to high-speed tooling evolvements or new materials, giving fabricators the flexibility to grow their business with the changes in the industry.

The VOYAGER™ XP runs with the world’s most popular operating system, Windows 10.

Compact Design

The small footprint, single-pick, monoblock design of the VOYAGER™ XP is ideal. True unitized design with no bolt-on extensions resulting in extreme rigidity. The compact design requires minimal floor space and works well with low ceiling heights – only 10 feet tall.

TightCut TM Blade Plunge

Improving shop productivity and increasing slab utilization was the focus when Park Industries® integrated the TightCut™ blade plunging feature. Utilizing its powerful spindle motor, the VOYAGER™ XP plunge cuts into the table’s lightweight concrete surface.

Tight Nesting & Material Yield – With TightCut™, less than 1” of clearance between adjacent nested parts is needed versus the typical 4” on CNC saws without this capability; giving you the ability to improve slab utilization. Fit that extra piece of backsplash and gain up to 10% more yield of your materials.

Tight Inside Corners & Less Routing – Cut sharp 90 degree corners quicker with TightCut™ as its blade plunging feature minimizes the amount of routing time required to finish the material removal in the corner.

Alphacam programming with exclusive Park EZ™

Programming made FAST and SIMPLE! Park EZ™ Buttons, exclusive on Park Industries® CNC machinery, make common programming tasks EZ. Paired with Alphacam’s world-class CAD software, use over 40 built-in Park EZ™ buttons to eliminate tedious programming steps and increase your productivity.

With buttons like Auto Tool Path, Ultracompact Automation, and Parametric Shapes – you can save 60% or more of your programming time and clicks!

Flexible, Operator Friendly Stone-Cutting

• The VOYAGER’s orthogonal cutting mode allows operators to cut manually in any direction at any desired angle, with a laser line to guide these simple manual cuts without generating a program. Positioning of the machine is controlled by manual joysticks on the HMI or a wireless pendant.

Select up to 3 models to compare key specs	VOYAGER™ XP View Layout Drawing
Arbor Motor	27 hp
Mitering	0-47°
Blade Size	14″ – 18″
RPM’s	1,000-6,000
VFD	Yes
5-Axis Waterjet	NA
TightCut Blade Plunging	Yes
Tool Bit Attachment	Yes
Cutting Modes	Full Auto (CNC), Manual
Table / Tank Options	Hydraulic Tilt Table
Cutting Surface Composition	Lightweight Concrete
Camera Options	Overhead, SIDE-SHOT, or Pathfinder
Max Slab Size (L x W)	144″ x 84″
Max Cut Depth	4.5″
Monoblock Design	Yes
Footprint including clearance (L x W x H)	26′ x 21’6″ x10′
Weight	14,500 lbs.
